J.MORKGADE RENOVATION PROJECT
(Click image to view pdf )

Renovated South Facade

J.Morksgade was built in 1921. The overall background to this proposal is to provide a new bathroom and kitchen for each apartment, as well as to install an elevator in the building. At the same time, it is requested that residents have internal access to both the basement and the courtyard without going outside.
A preliminary registration report has been made, which was prepared by an external consultant.
The proposal has been prepared on the basis of this registration of the existing conditions and discussion with the owner.
The client wishes the case is processed, thus the systematics of BVB's tools are used. Bid to the contractor complies with current legislation and GC18/92. Regardless of whether there is public support in the project or not, it is the client´s wishes that the requirements of ICT agreement will be fulfilled.
The client wants an economic calculation of any measures to achieve Renovation class 1 and 2 in BR15.
Furthermore, the client also requests a statement of sustainable initiatives beyond BR requirements. The proposal gives a description of the maintenance work in roofs, facades, staircase, surfaces, etc. and a description of the improvement through the establishment of new bathrooms, new kitchens, arrangement of the basement, fireproofing and insulation works.



FLOORPLANS

BUILDING SECTION

I01_JM_A2_C07.1_N09__DD2 Building sectio
I01_JM_A2_C07.1_N12__DD2 South  Elevatio

ELEVATIONS

I01_JM_A2_C07.1_N13__DD2 West  Elevation
I01_JM_A2_C07.1_N10__DD2 North Elevation
I01_JM_A2_C07.1_N11__DD2 East  Elevation

BUILDING SERVICES ANALYSIS

I01_JM_A1_C05.6_N07__Ventilation analysi
13-05-19 J - Sheet - H1_N15 - DOMESTIC W
Ventilation analysis
Domestic water and waste
13-05-19 J - Sheet - H1_N16 - DOMESTIC H
Domestic heating plan

IMPRESSIONAL PROCESS

3DLocation_plans_-_Sheet_-_H3_N03_-_ÌMPR

 EXISTING BUILDING ANALYSIS

I01_JM_A2_C10.5_N01__Material  and hazar
I01_JM_A1_C05.5_N03__Existing floorplan
I01_JM_A1_C05.5_N03__Existing section fi
I01_JM_A1_C05.5_N09__Energy analysis.jpg
I01_JM_A1_C05.5_N10__Static analysis.jpg
I01_JM_A1_C05.5_N12__Sound section analy
sound analysis.JPG
Existing fire analysis
Existing fire analysis
 Existing energy analysis
Existing  sound analysis
Existing sound analysis
Existing structural analysis
Material and hazardous substances

RENOVATED BUILDING ANALYSIS

I01_JM_A2_C05.5_N01__Renovated floorplan
Fire analysis floorplan
I01_JM_A2_C05.5_N02__Renovated section f
I01_JM_A2_C05.6_N06__Static analysis.jpg
I01_JM_A2_C05.5_N03__Sound analysis floo
I01_JM_A2_C05.5_N04__Sound analysis sect
Fire analysis section
Structural analysis
Floorplan sound analysis
Section sound analysis
I01_JM_A1_C05.9_N13__Energy analysis.jpg
Section energy analysis

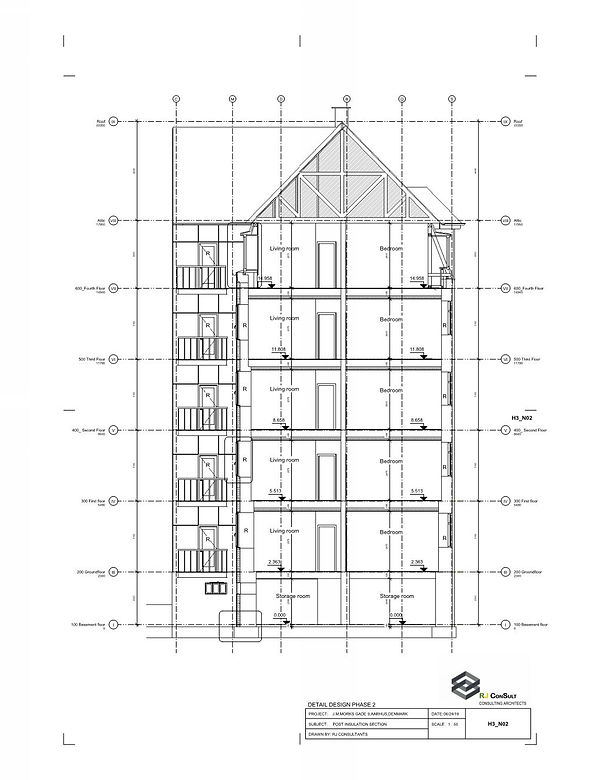

I01_JM_A2_C07.1_N19__Post Insulated Sect

INDIVIDUAL TECHNICAL DETAILS(ELECTIVE PROGRAMME ELEMENT)

The second part of the 5th semester was an individual subject. I had to choose a topic to focus on for my technical details in relation to our project. I decided to work on post-insulation of the north facade and plastering including details at windows, masonry-reparation, and plastering of internal walls/ door holes
 I started by doing research and reading literature on post-insulation.I consulted my instructor on my technical detail sketches. After finilazing the sketches,I drafted them on revit,

I01_JM_A2_C07.1_N21__Post Insulation Fou
I01_JM_A2_C07.1_N23__Post Insulation Pla
I01_JM_A2_C07.1_N22__Plaster Door hole d
I01_JM_A2_C07.1_N25__Post Insulation Dor
I01_JM_A2_C07.1_N20__Post Insulation Win
